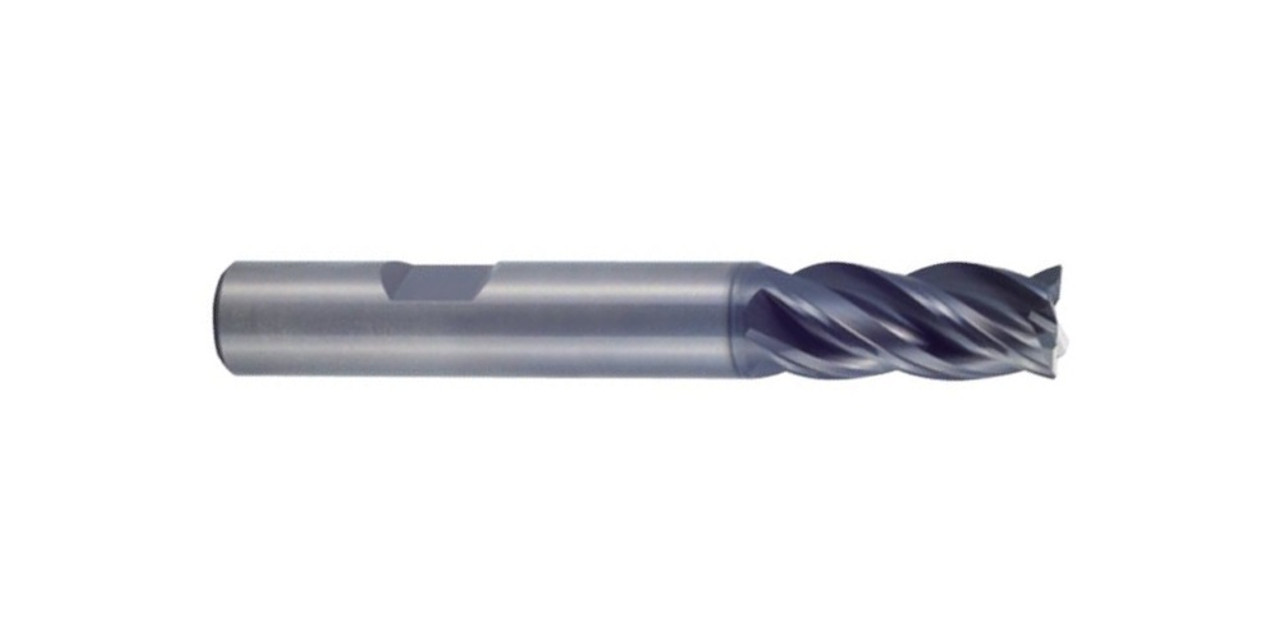

1/2 Dia., 4 Flute., 2-1/2 LOC, 0.125 Corner Rad, Flat Shank, V7 Plus A, Coated Carbide End Mill
Now:
$162.94
(You save
$56.06
)
Part Number:
UGMF71S964
Diameter:
1/2 in.
Length of Cut:
2-1/2 in.
Overall Length:
4-1/2 in.
Flutes:
4
Coating:
Y Coating
End Type:
Corner Radius 0.125 in.
Type:
High Performance
Helix Degree:
35/37 Degree Variable Flute
Features:
Flat Shank
stock_level:
28
Product Description
1/2 Dia., 4 Flute., 2-1/2 LOC, 0.125 Corner Rad, Flat Shank, V7 Plus A, Coated Carbide End Mill
V7PlusA For Stainless Steels, Mild Steels, Cast Iron, Low/Medium Hardness Materials Under Hrc40 Excellent material removal rates and surface finishes Unequal indexing for reduced chatter (harmonics) and improved stability Advanced coating for superior performance and tool life Multiple Helix - Improved flute geometry for impressive chip formation and evacuation Noticeably smooth operation in high-speed machining and peel-milling applications Superior slotting and profiling in most ferrous materials for more flexible use Excellent performance in high-speed trochoidal milling applications for improved accuracy, reduced vibration and better heat displacement Premium-grade carbide substrate for longer tool life
Specs
D1
Diameter
1/2
D2
Shank Diameter
1/2
L1
Length of Cut
2-1/2
L2
Overall Length
4-1/2
R
Corner Radius
0.125
Product Videos
Custom Field
Diameter 1/2 in.
Length of Cut 2-1/2 in.
Overall Length 4-1/2 in.
Flutes 4
Coating Y Coating
End Type Corner Radius 0.125 in.
Type High Performance
Helix Degree 35/37 Degree Variable Flute
Features Flat Shank
stock_level 28
